GlassFormer

Learning Real-time Glass Segmentation using Radar-Depth Fusion
Suhani Grover, Astik Srivastava, Viswas Dinesh, Avinash Sharma, Madhava Krishna

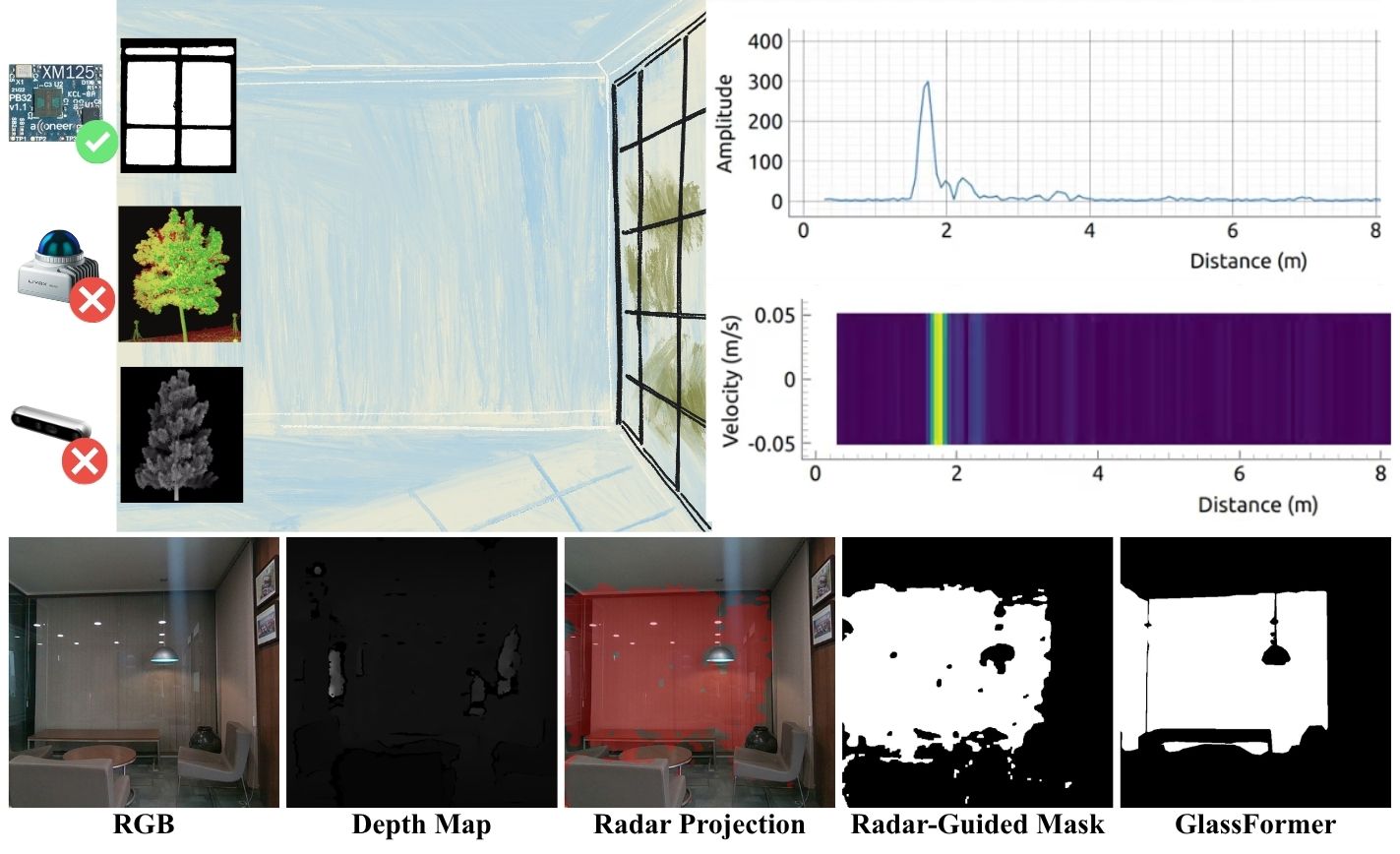

GlassFormer teaser

Transparent surfaces are a persistent failure case for robotic perception: RGB cameras see the background behind glass, and depth sensors return invalid or background measurements at transparent interfaces. GlassFormer fuses 60.5 GHz millimeter-wave radar with RGB-D sensing. Radar reflects strongly off glass precisely where vision and depth fail, giving a geometric cue that is insensitive to lighting. We turn the radar–depth inconsistency into a coarse spatial prior and inject it into a SegFormer-B2 backbone via cross-modal RadarAttention, achieving 0.88 mIoU on a mixed-condition split and 0.59 mIoU on a dedicated low-light split, in real time on resource-constrained platforms.

Highlights

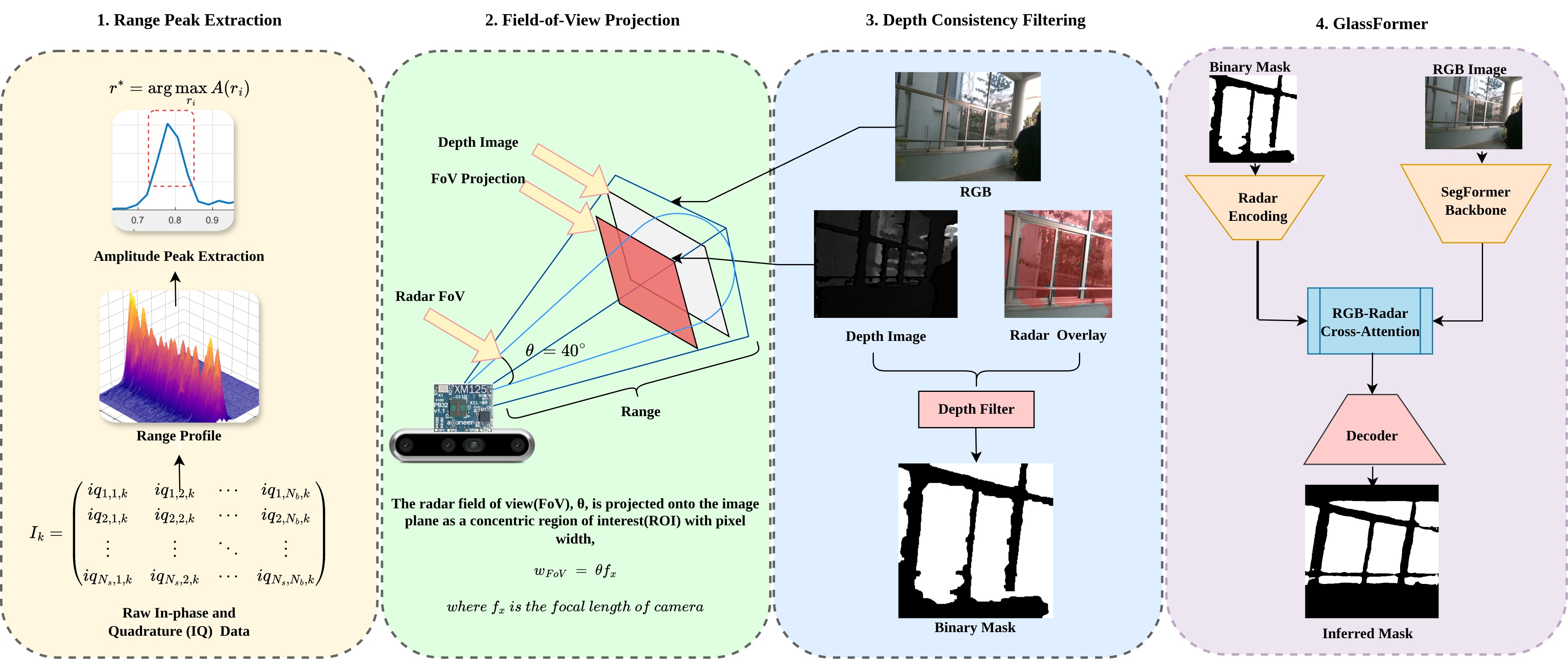

Pipeline

Radar-guided mask generation — fuses mmWave range peaks with RGB-D depth inconsistencies to localize transparent-surface candidates in the image plane.
GlassFormer — a SegFormer-B2 network with lightweight RadarAttention modules at the two deepest encoder stages; robust under low-light and glare.
Synchronized RGB-D-radar dataset — 1800 annotated frames spanning glass doors, windows, walls, mirrors, and tinted glass across daylight-to-near-dark.
Open-source ROS2 driver for the Acconeer XM125 pulsed coherent radar, plus a real-time inference node.
Runs at 70.6 fps on an RTX-4060 laptop GPU and 13.2 fps CPU-only.

Results

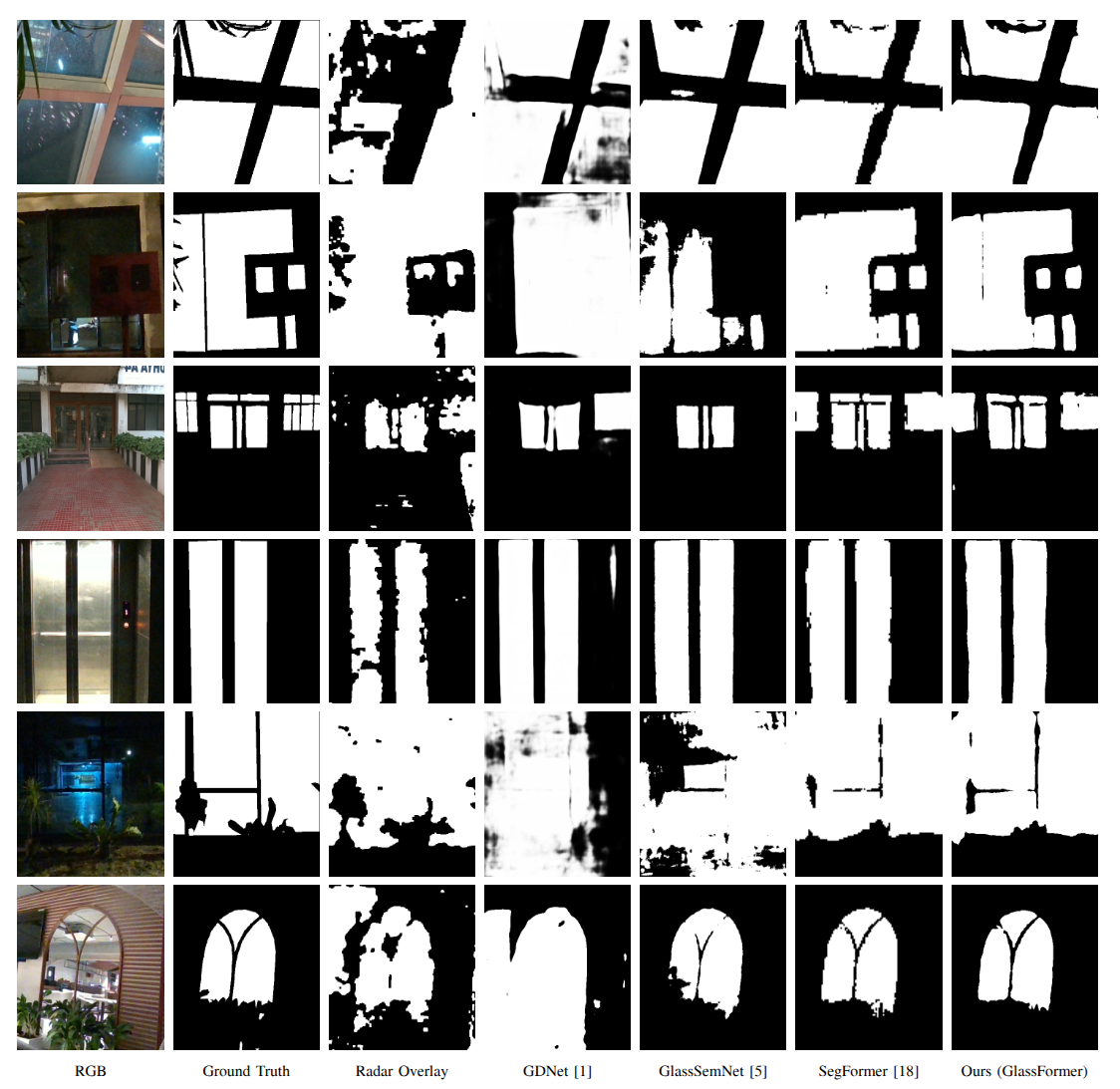

Qualitative Results

Well-lit (mixed) split

Method	mIoU ↑	MAE ↓	F-measure ↑	BER ↓
GDNet	0.5485	0.2894	0.6951	0.2618
GlassSemNet	0.6336	0.1945	0.7769	–
SegFormer	0.8799	0.0938	0.9361	0.0517
Radar Overlay	0.4687	0.3474	0.6382	0.3348
GlassFormer (ours)	0.8818	0.0835	0.9372	0.0517

Low-light split

Method	mIoU ↑	MAE ↓	F-measure ↑	BER ↓
GDNet	0.4824	0.4031	0.682	0.3981
GlassSemNet	0.4623	0.3620	0.7010	–
SegFormer	0.4912	0.3588	0.6588	0.2819
Radar Overlay	0.5407	0.3148	0.7019	0.3097
GlassFormer (ours)	0.5904	0.2895	0.7424	0.2406

Repository structure

GlassFormer/
├── glassformer/                    # ML package (model, data, train, eval)
│   ├── models/glassformer.py       # RadarAttention + GlassSegFormerRGBRadar
│   ├── data/dataset.py             # GlassSegDataset + get_loaders
│   ├── losses.py                   # BCE + Lovasz hinge loss, IoU metric (§IV-B.3)
│   ├── train.py                    # training entry point
│   └── evaluate.py                 # benchmark vs. baselines (Tables II/III)
├── ros2_ws/src/
│   └── acconeer_ros2_driver/       # ROS2 radar driver + real-time pipeline
│       └── acconeer_ros2_driver/
│           ├── acconeer_iq_node.py     # XM125 IQ driver → range profile
│           ├── radar_mask_node.py      # radar-guided mask generation (§IV-A)
│           └── glassformer_node.py     # real-time segmentation inference
├── assets/                         # figures
├── docs/                           # project page (GitHub Pages)
├── requirements.txt
└── pyproject.toml

Installation

ML side (training / evaluation)

git clone https://github.com/Suhani92/GlassFormer.git
cd GlassFormer
python -m venv .venv && source .venv/bin/activate
pip install -e .          # installs the `glassformer` package + requirements

ROS2 side (radar driver + real-time inference)

Requires ROS2 (Humble or later) and the Intel RealSense ROS wrapper.

# 1. Intel RealSense ROS wrapper (not vendored here — install upstream):
sudo apt install ros-$ROS_DISTRO-realsense2-camera
#    or build from source: https://github.com/IntelRealSense/realsense-ros

# 2. Acconeer radar tooling:
pip install "acconeer-exptool[app]"

# 3. Build this workspace:
cd ros2_ws
colcon build --packages-select acconeer_ros2_driver
source install/setup.bash

Usage

Training

python -m glassformer.train --data-root /path/to/dataset --img-size 402

Evaluation

python -m glassformer.evaluate \
    --data-root /path/to/test_split \
    --radar-ckpt checkpoints/best_glassformer.pt \
    --segformer-ckpt checkpoints/best_segformer_baseline.pt \
    --save-dir results/

Real-time pipeline (ROS2)

# Radar driver + radar-guided mask generation
ros2 launch acconeer_ros2_driver glass_launch.py serial_port:=/dev/ttyUSB0

# Segmentation inference node (point it at your checkpoint)
ros2 run acconeer_ros2_driver glassformer_node \
    --ros-args -p model_path:=/path/to/best_glassformer.pt

The dataset is expected as:

<data_root>/{train,val,test}/
    images/       # RGB frames
    radar_mask/   # radar-derived binary priors
    gt_masks/     # ground-truth glass masks

Dataset

The synchronized RGB-D-radar dataset (Acconeer XM125 + Intel RealSense D455, rigidly mounted via a 3D-printed bracket) will be released here.

Citation

@inproceedings{grover2026glassformer,
  title     = {GlassFormer: Learning Real-time Glass Segmentation using Radar-Depth Fusion},
  author    = {Grover, Suhani and Srivastava, Astik and Dinesh, Viswas and Sharma, Avinash and Krishna, Madhava},
  booktitle = {IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS)},
  year      = {2026}
}

Acknowledgement

This work was supported by IHub-Data via project M2-029.

License

Released under the MIT License.
